User Guide

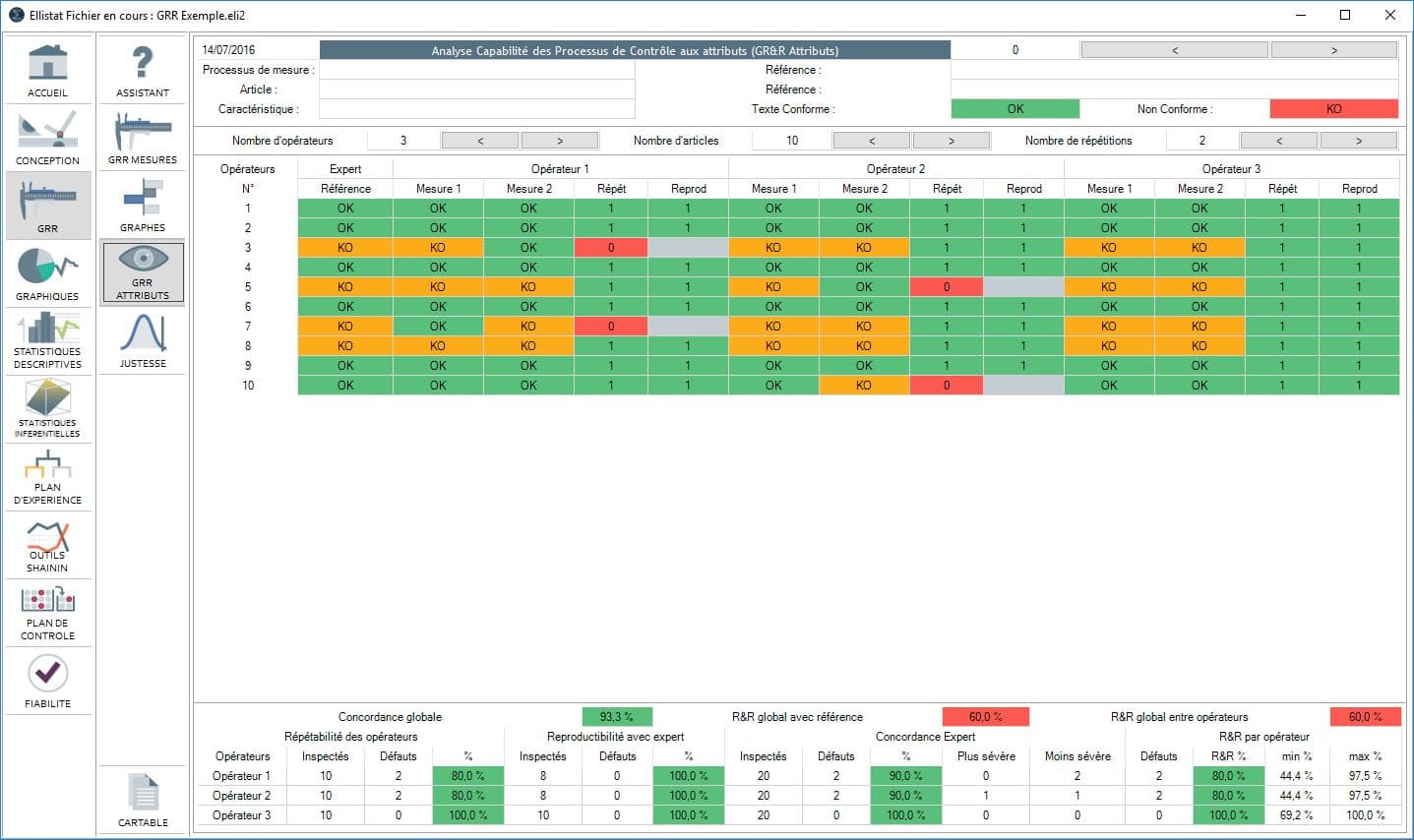

Gage R&R - Attributes

Input is entered by clicking on the boxes:
Left click: OK Right click: KO
By clicking on the heading, all the values are changed to OK. Only the KO values need to be modified.
The first line of results gives the total capability analysis, each operator is then detailed. We provide:
**Repeatability : **The capacity of an operator to agree with itself.
Agreement : The proportion of measurments conforming to the reference measurement. Be careful that an agreement of 50% corresponds to a random sampling of data. The agreement objective is 90%.
**Reproducibility : **The capacity of an operator to agree with the reference when it is in agreement with itself.
